The Logic Group

Logic Trace
Estimating System

Calculate Areas and Lengths from Construction Plans

#

Some of the many industries using the Logic Trace Estimating System

Contractors
Builders
Landscape
Roofers
Painters
Marine and Boats

Woodworking
Furniture
Upholstery
Waterjet
Large Companies
Mom and Pop Shops

Estimating Video





Visit Video Library
Logic Trace Estimating System

Perform Takeoffs quickly and easily for the construction and other industries. Digitize areas, distances (lengths), and counts from blueprints, maps, plans, and drawings. Easily export results to Excel.

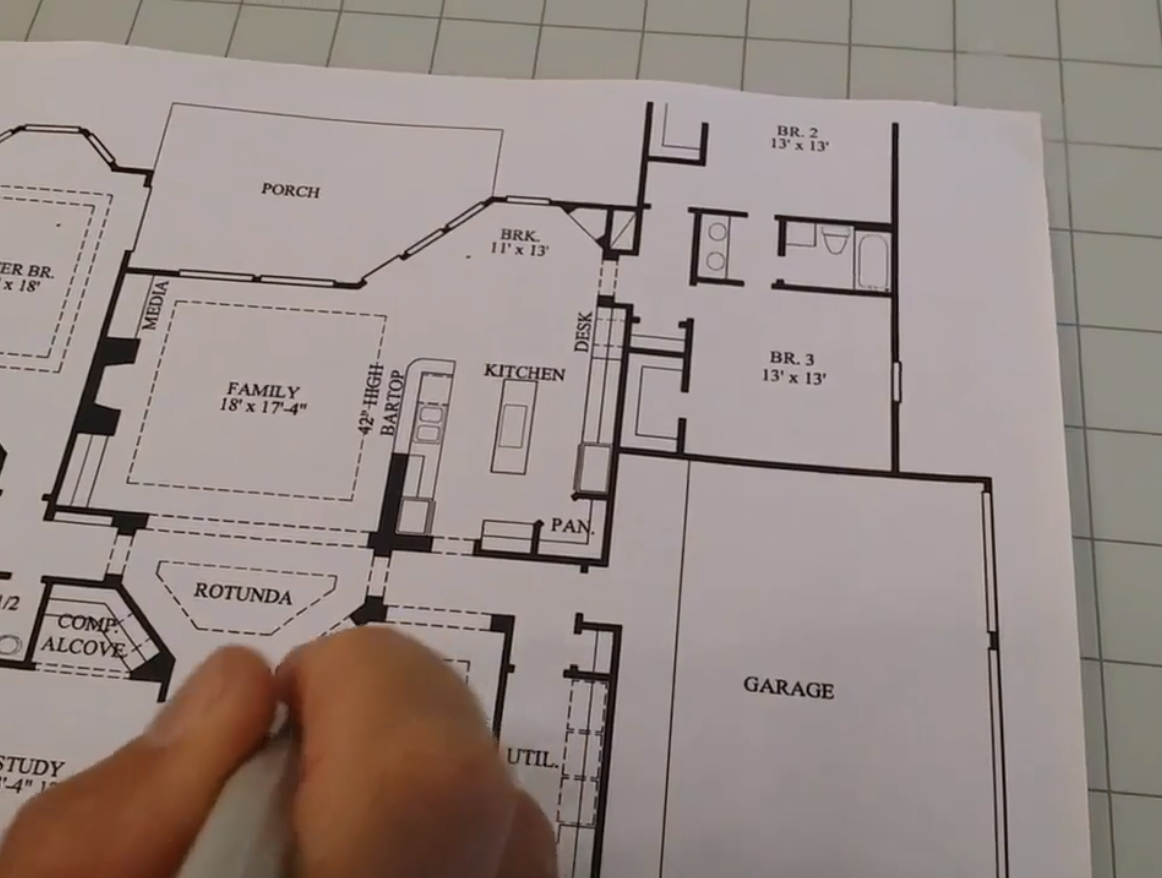

Use a digitizing tablet to perform takeoffs from printed blueprints and plans and the computer's mouse to perform takeoffs from digital images. On touchscreens, takeoffs can be performed with your finger or pen pointer.

Start the Fast Takeoff software program, input the scale units, English or metric. Input the scale or calculate the scale from the plans by digitizing a known distance. Choose to digitize area, length, or counts. Digitize the item using the digitizing tablet or screen. Digitizing can be point to point, or continuous. Area and lengths can be added to find a cumulative distance or cumulative area. Lengths and areas can also be subtracted. From area calculation volume or pitch can be computed.

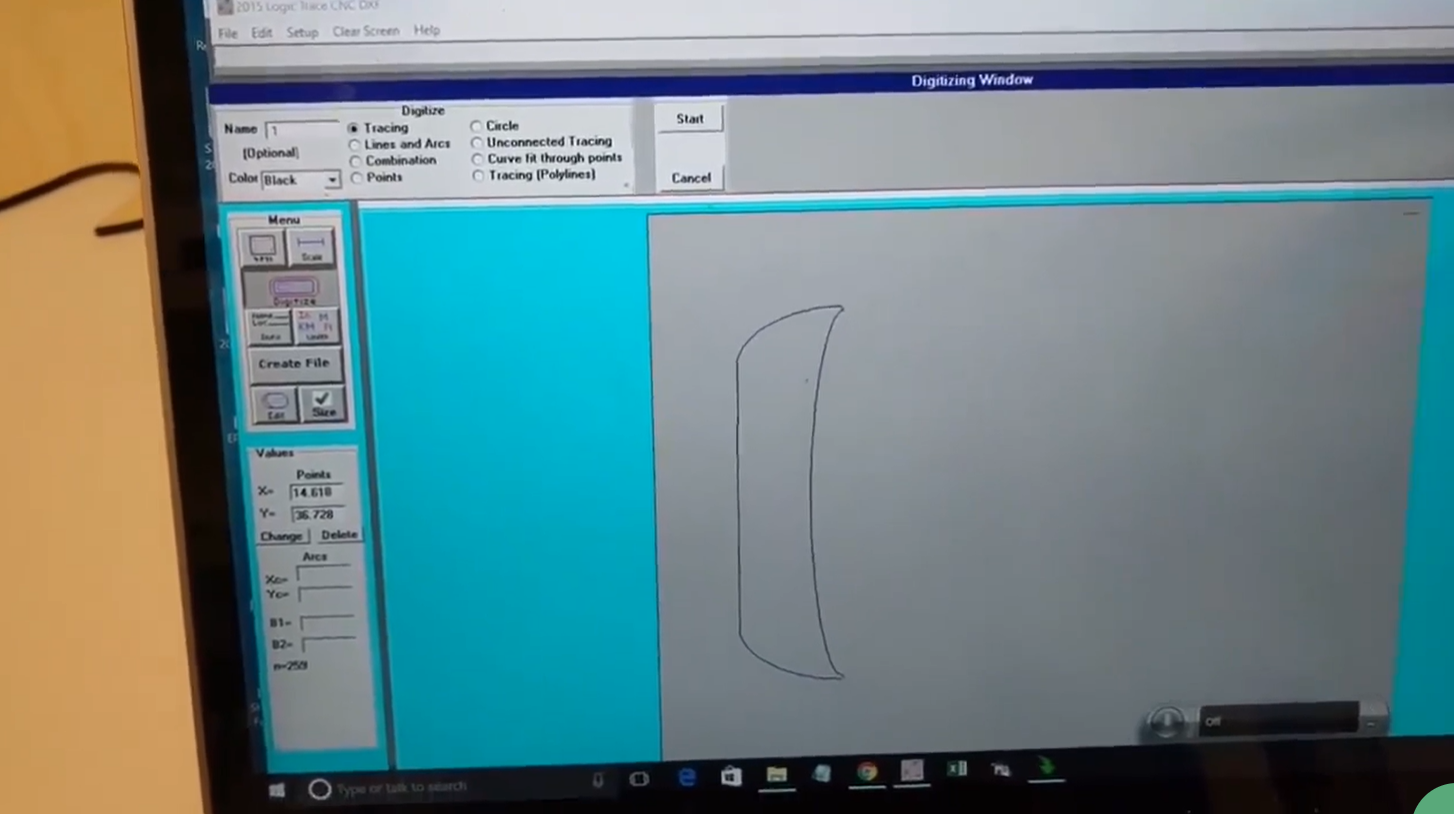

Digitizing items are displayed on screen while digitizing. The result tables can be printed or saved in Excel files.

How Logic Trace Works Video





Visit Video Library
Features
  • - Trace object or drawing and create DXF graphics file
  • - Fast and easy
  • - Very accurate with .01" standard, 0.005" accuracy available
  • - Complete tracing system consisting of digitizing board, pen stylus and Logic Trace software for creating DXF files.
  • - Available size boards include 44x60", 36x48", 24x36", 20x24", 12x18" and 12x12"
  • - Metric sizes 110x150cm, 90x120cm, 60x90cm, 50x60cm, 30x45cm and 30x30cm
  • - Multiple boards can be connected for tracing very large patterns: 5x8', 5x12', 5x16', 8x11' and bigger. Metric sizes are 1.5x2.5m, 1.5x3.6, 1.5x4.8m, 2.4x3.3m

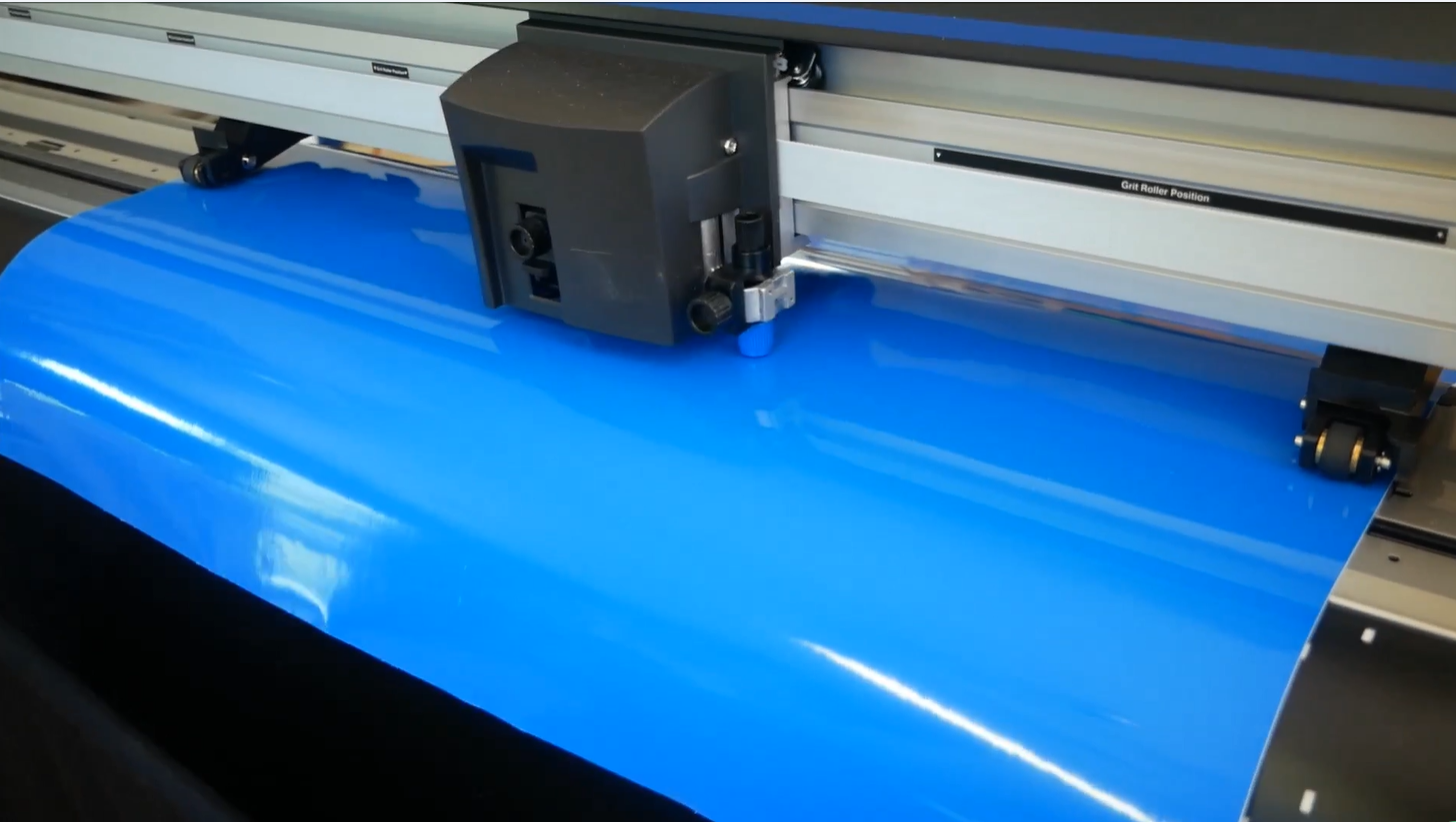

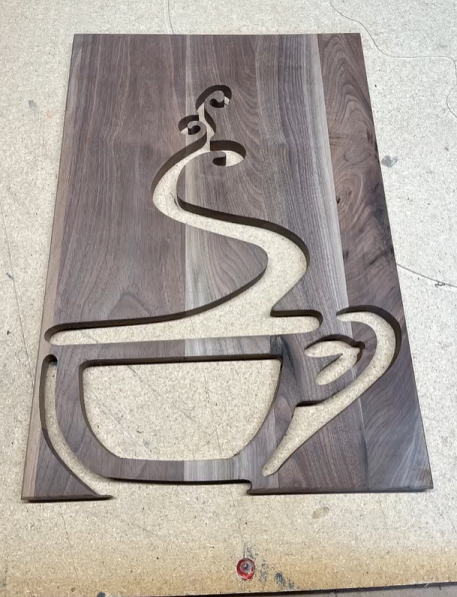

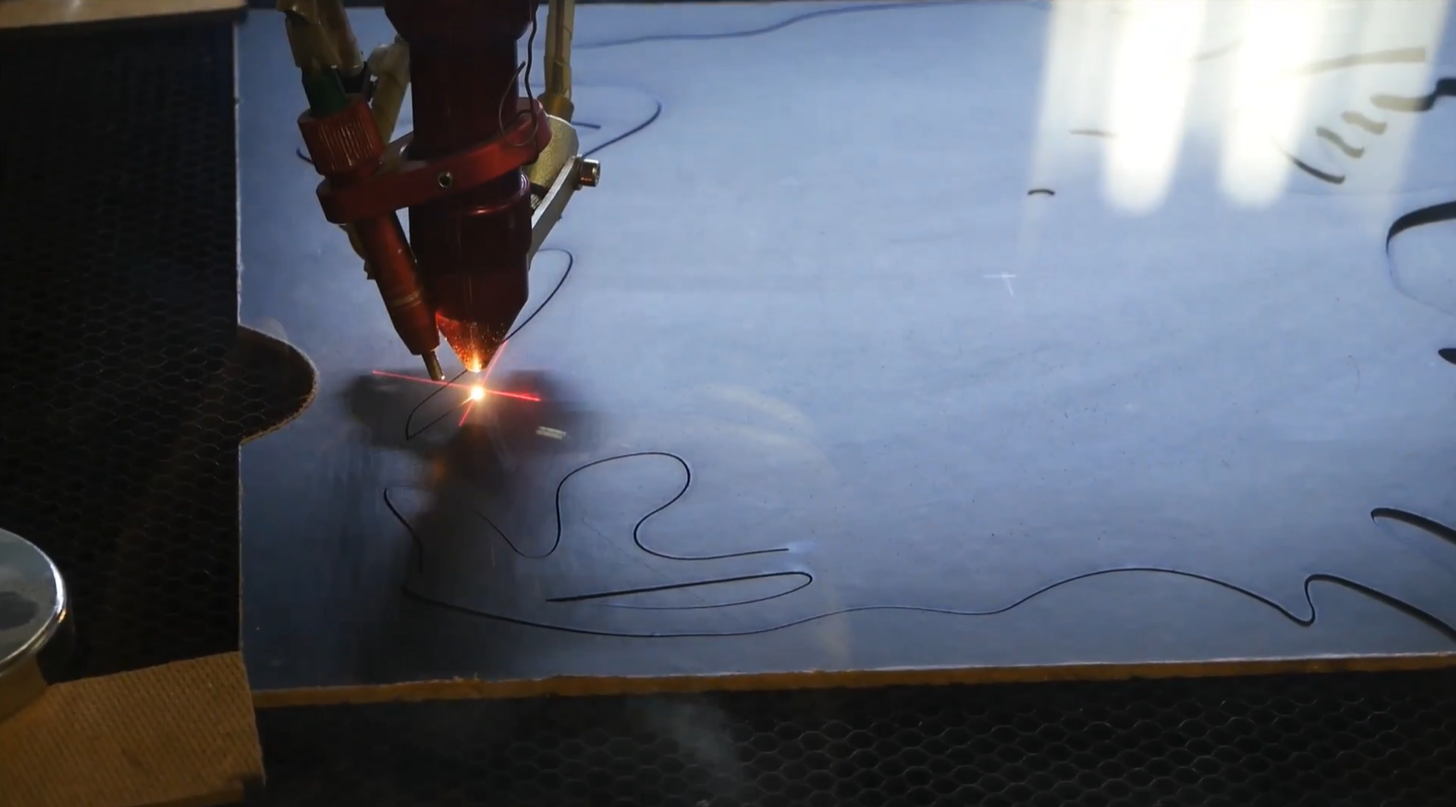

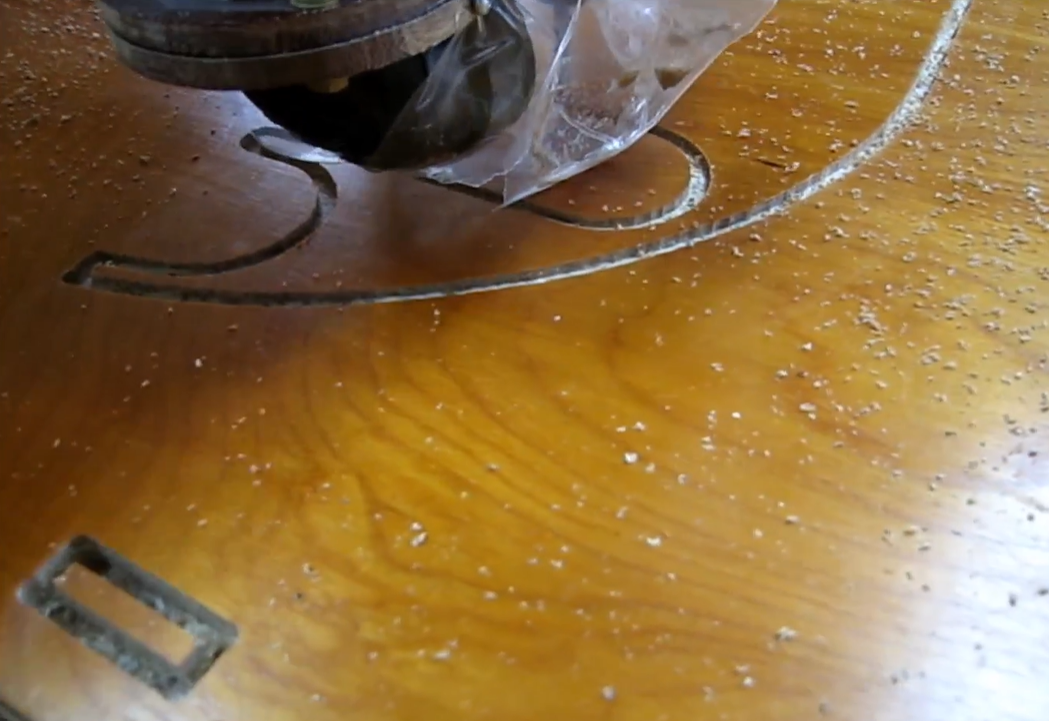

  • - Useful in hundreds of different CNC and Cutting machines including routers, waterjets, plasma, metalworking, manufacturing, wood-working, plastics, furniture, upholstery, garments, machining
  • - Useful in hundreds of different industries metalworking, manufacturing, wood-working, plastics, furniture, upholstery, garments, machining, sign-making, boat manufacturing

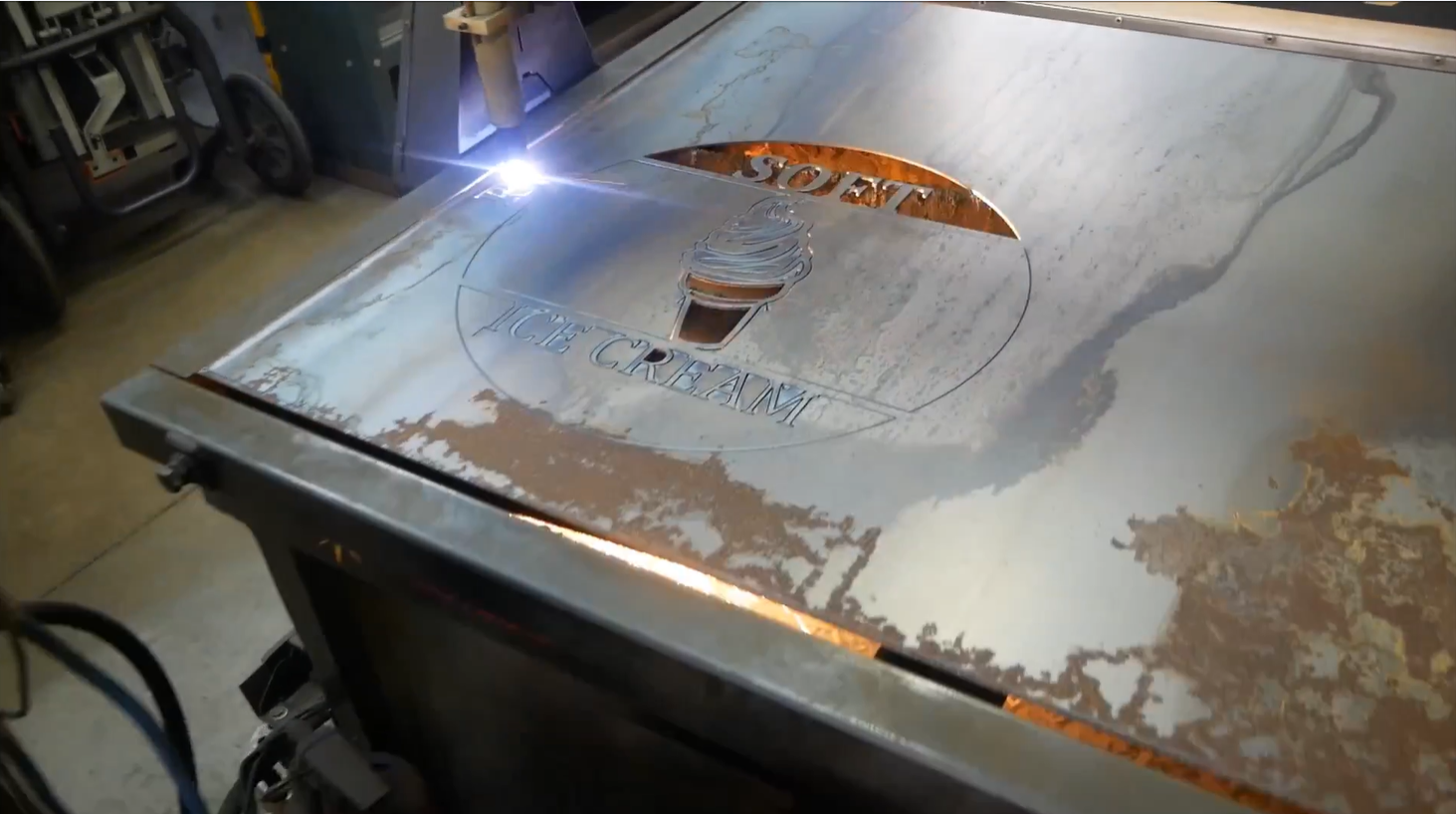

Trace Metal Part and Cut with Plasma Cutter Video





Visit Video Library
Additional Features
  • Trace lines, arcs, curves, points, circles
  • Trace point to point or continuously
  • Generate DXF files with Arcs and Lines or Polylines
  • Generate Gcode files
  • Convert DXF files to other formats

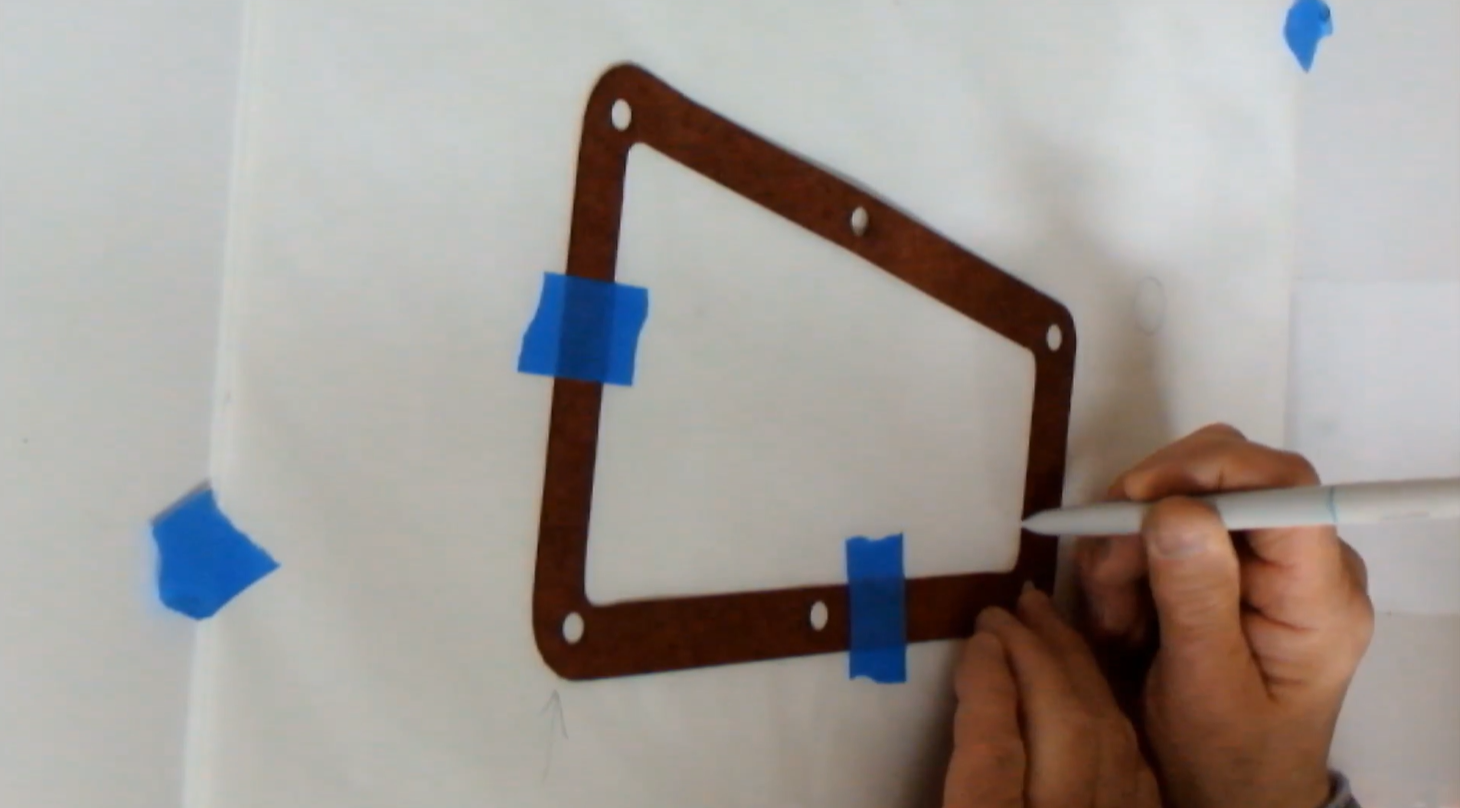

  • Trace object on digitizer using pen stylus or cursor
  • Place object directly on digitizer or trace from template on digitizer
  • Pen can register almost an inch above surface of board, trace through paper, cardboard, plastic, mylar
  • Create accurate graphics files of objects in minutes
  • Normal scaling is 1:1 but different scaling and sizes possible
  • English and metric units
  • Arcs created by digitizing endpoints and any middle point
  • Complex curves can be created using polylines or digitizing multiple points and arcs automatically created

Jumbo Tracer Video





Visit Video Library
Jumbo Tracer
  • A product developed by The Logic Group and GTCO Calcomp for tracing large templatespatterns/parts using multiple digitizing tablets and Logic Jumbo Trace software
  • Up to 16 boards can be connected and used at one time to digitize patterns up to 88' in size (28 m) in size
  • Accuracy across boards maintained through exclusive calibration sheets. During setup, users digitize points on the calibration sheets placed between connecting boards. defining proper alignment
  • Exclusive mounting hardware for connecting multiple boards in any user chosen configuration - rows, columns, squares, and L shaped. Boards can be rotated 90 degrees for additional setup variations. Modular system makes reconfiguration of tablets easy.
  • Sizes available include 5x8', 5x12', 5x16', 8x11' and larger. Metric sizes are 1.5x2.5m, 1.5x3.6, 1.5x4.8m, 2.4x3.3m
More Jumbo Tracer Information

Extra pen stylus is $100, extra cursor for $100, digitizer stand for $900.

Need a larger size? Check our our Jumbo Tracer Product using multiple connected boards.

Trace and Cut Wooden Chair Video





Visit Video Library
Digitizing Boards

A Digitizing Board is an electrical-magnetic board and pointer (pen or cursor) that can send highly accurate XY points to a computer program. The board is about an inch thick, contains an electrical grid underneath with a hard Formica surface. The digitizer's pen or cursor (mouse-like device with magnifying glass and crosshair) creates a magnetic field which is "sensed" by the electrical grid in the board. Press the tip of the pen or push a button on the cursor and a highly accurate XY point, representing this location, is sent to the computer through a USB connection. The Logic Trace software then turns those points or stream of points into a DXF file. Most Logic Trace clients prefer using the pen stylus to trace around the edge of a part or pattern.

The pen stylus does not need to be touching the board, the board can sense the tip of the pen almost an inch above the surface without losing accuracy. Digitize through paper, plastic, cardboard, glass.

Over 10,000 users think so! Accurately digitize a part or pattern in a few minutes. We have been selling the product for over ten years and have over 1000 companies joyfully using the product. Many companies have boards in multiple locations.

Most metals yes, over half of our clients are metal fabricators. It can also digitize paper, cloth, plastic, glass, cardboard, plywood, almost anything. It does have trouble with aluminum, it interferes with the magnetic field in the pen stylus. For aluminum, users must trace onto paper and then digitize the paper.

Short answer, it can digitize through paper, cardboard, and other materials. Long answer. The board had an electrical grid with a Formica surface, the pen stylus generates a magnetic field which when placed within an inch of the board the board can "sense" exactly where the tip is. We can digitize patterns drawn on paper, cardboard or anything.

The best way to determine if this will work for you in to use one in your office and try it with your patterns and your CNC machines. Buy one and we offer a complete 60-day money back guaranty. Try it and if it doesn't work we will arrange shipping and provide a full refund. Returns rarely happen.

Yes, it has a hard surface and lasts between 20 and 30 years. It can handle heavy weight, several hundred pounds, care should be taken to not drop anything on it or puncture the board. It can handle dirty shop environments. The surface can easily be cleaned using a damp cloth.

Yes, buy one 44x60 board now and then buy another board later to make a Jumbo Tracer.

The boards come in two accuracies either 0.01" (hundredth of an inch, 10 mil) or 0.005" (5 thousandth 5 mil) and the pen stylus has a sharp plastic tip like a sharpened pencil. Because the pen generates a magnetic field, the board knows exactly where the tip is. Our customers tell us the traced patterns are within the accuracy of the board - .01" or 0.005". We also have a check size feature where two points are digitized on the part and the program automatically resizes the dxf file.
