Logic Trace CNC DXF Digitizing System
✷ A Digitizing Board is an electrical-magnetic board and pointer (pen or cursor) that can send highly accurate XY points to a computer.
✷ The board is about an inch thick, contains an electrical grid underneath with a hard Formica surface.
✷ The digitizer's pen or cursor (puck-like device with magnifying glass) creates a magnetic field which is "sensed".
✷ Press the tip of the pen or push a button on the cursor and a highly accurate XY point, representing this location, is sent to the computer through a USB connection.
✷ The Logic Trace software then turns those points or stream of points into a graphics file.
✷ The pen stylus does not need to be touching the board, the board can sense the tip of the pen almost an inch above the surface without losing accuracy. Digitize through paper, plastic, cardboard, glass.
✷ Any and all industries that need to easily trace a 2D pattern and save it as a vector file for loading into any apparel, fabric, or design software
Or give us a call 1-512-656-8195 John Walsh
44 (0) 7720 974 993 John Haw
In North or South America
Call, text, or email John Walsh at
1-512-656-8195 [email protected]
in Europe, Africa, or Asia
Call, text, or email John Haw
44 (0) 7720 974 993 [email protected]
| Logic Trace Apparel System | Price |
|---|---|
| Size 44" x 60" (110x150cm) | $4300 |
| Size 36" x 48" (90x120cm) | $4100 |
| Size 24" x 36" (60x90cm) | $3900 |
| Size 20" x 24" (50x60cm) | $3700 |
| Size 12" x 18" (30x45cm) | $2000 |
| Size 12" x 12" (30x30cm) | $1800 |
| Logic Trace Apparel System Rollup | Price |
|---|---|
| Rollup Size 36" x 48" (90x120cm) | $4100 |
| Rollup Size 30" x 36" (60x90cm) | $3900 |
Larger boards are shipped freight truck in the USA and air freight worldwide with the option of local delivery. Smaller boards and rollups are shipped express air.
Price includes tracing board, corded or cordless pen stylus or cursor and Logic Trace Apparel software.
Optional accessories include an extra pen stylus, cursor or tracing board stand.
We occasionally have used/refurbished boards available in the USA, contact our office for availability and price.
Or give us a call 1-512-656-8195 John Walsh
44 (0) 7720 974 993 John Haw
Apparel System Video
Video
Outside Boundary/Cut Line Video
Trace Window Video
Features Video
Example Video
Example Video
I am amazed by its simplicity, Logic Trace can do the job in half the time, is cost effective, and increases productivity. I was digitizing patterns within an hour of installing the software. I would highly recommend this product as it is user friendly, very reasonably priced and completes its task with precision. Congratulations on a great product.
Your table has paid for itself in the first year, it's is amazing tool. This unit makes my job easier for creating fine art files, ten times faster. The board and your support has exceeded way beyond my expectations. Thank you Logic Group.
Hi John, I thought I'd drop you a quick email to let you know just how good your tablet and software is proving itself. Over the past week or two I've had a large run of jobs to cut from templates and your system has been brilliant. It's easy to use and more accurate than I had expected. This really is an excellent time saver. Really glad I bought it. Many thanks for a system that does everything it claims to do. A rare find these days. Best regards
I want to inform you, I'm so happy with my new digitalizing board! It makes my life easier.

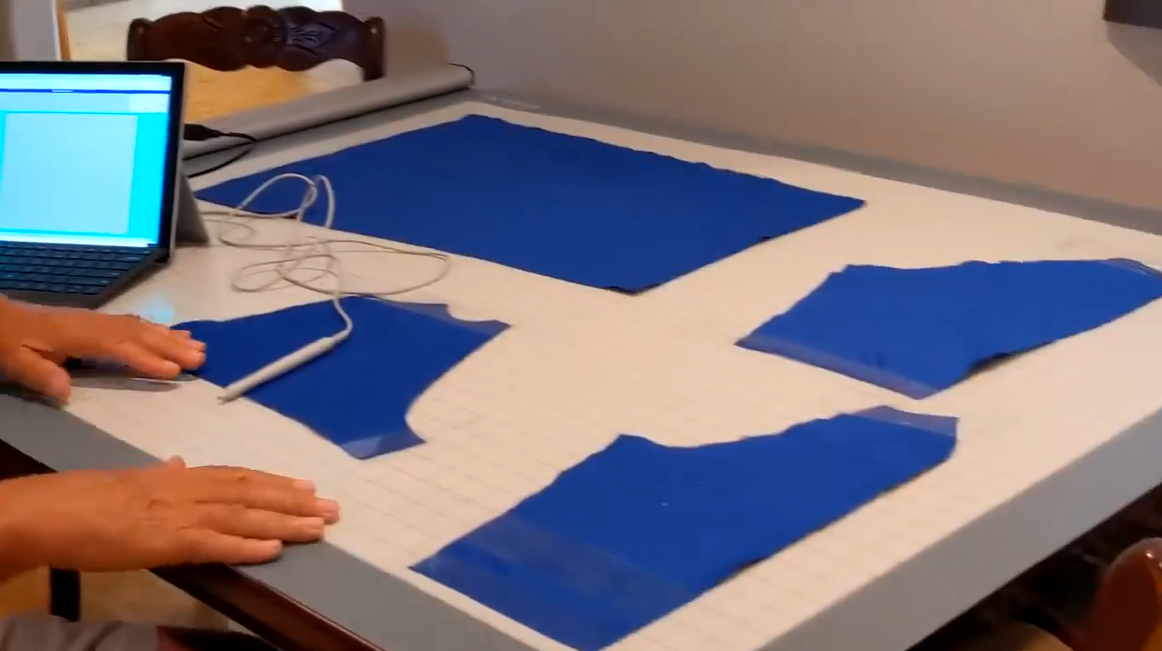

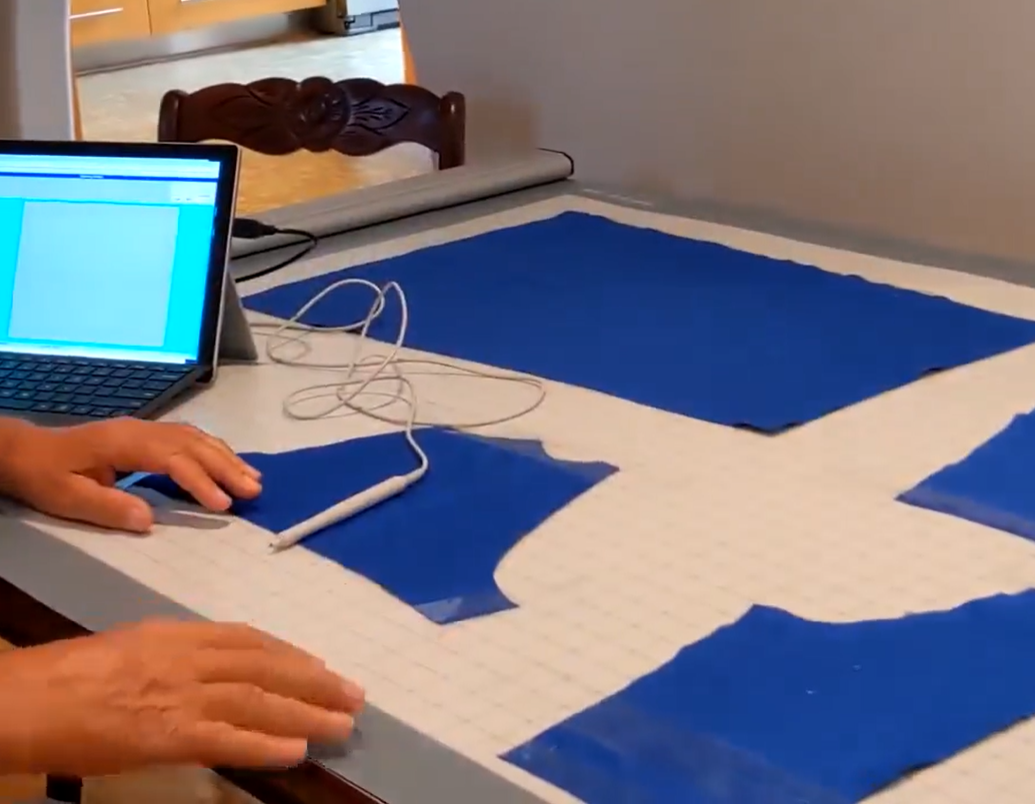

Place the paper pattern or actual pieces on the Logic Trace electronic board. Pieces can be fabric. cardboard, plastic, glass, wood, paper drawings, anything!

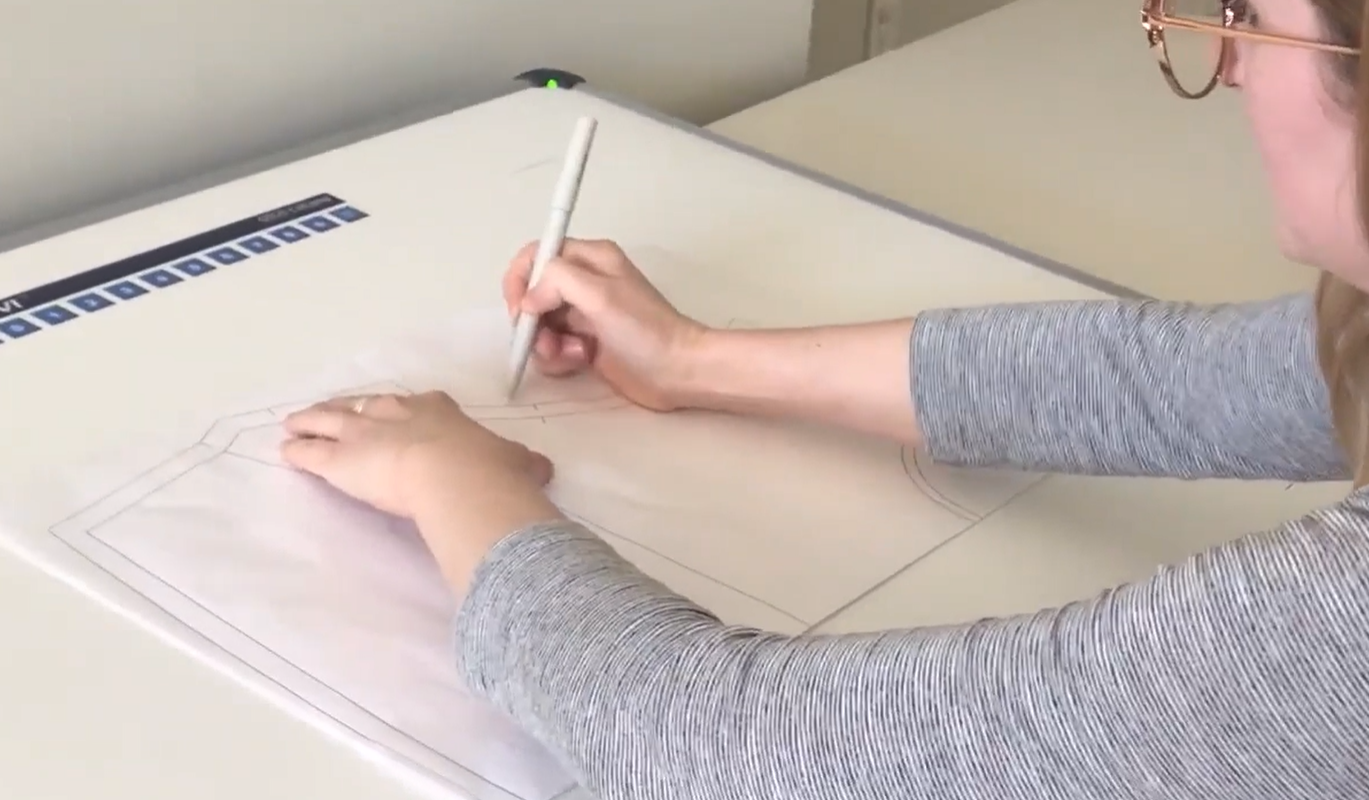

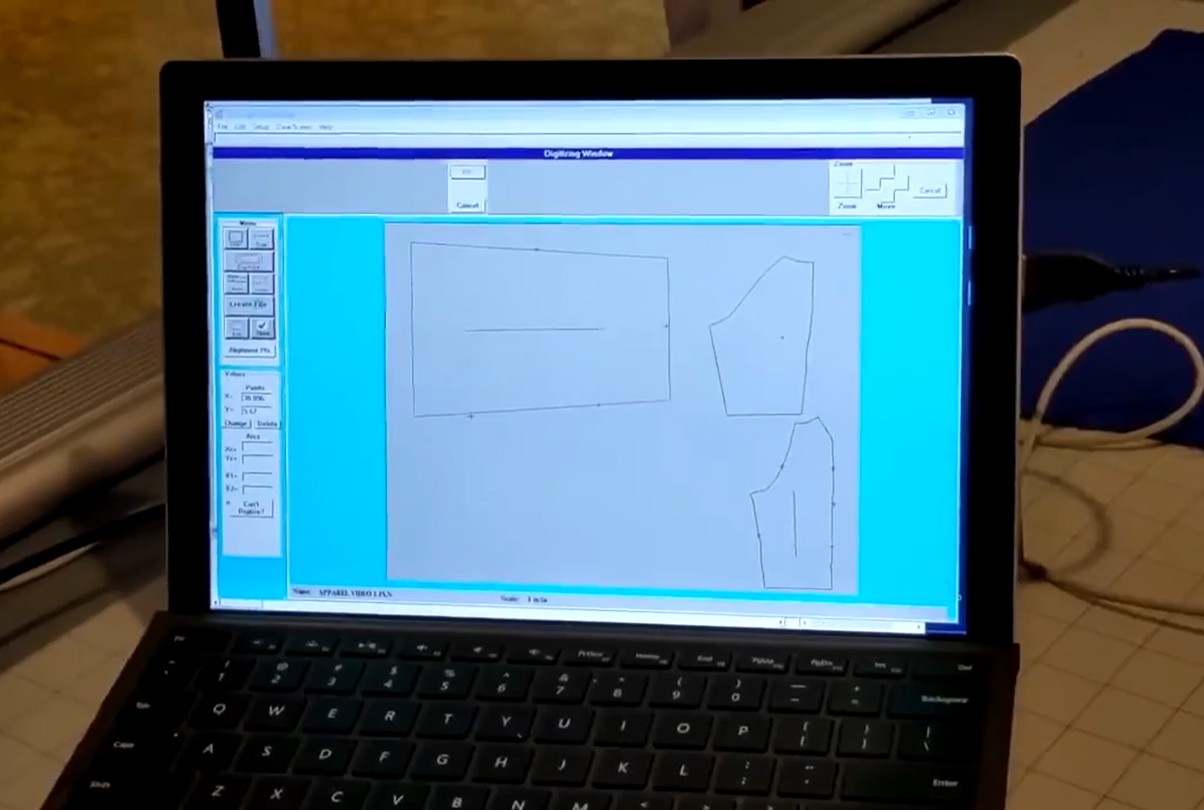

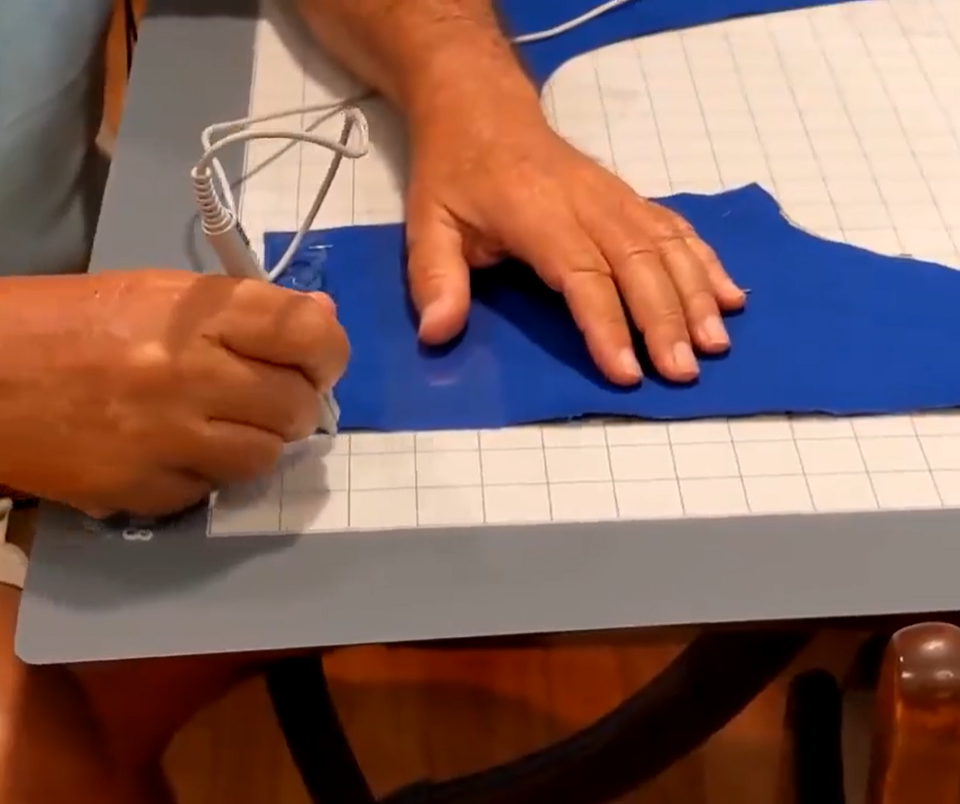

Start the Logic Trace Software and trace the part or pattern with the pen stylus or cursor. Tracing can be freehand drawing, lines, arcs, circles, and curves.
Save the design as a graphics file and load the file into your apparel or pattern-making software. Total time from start to finish, just minutes!
✷ The largest tracing board is 44x60" (110x150cm) which is large enough for most applications. We do frequently get requests for larger tracing systems.

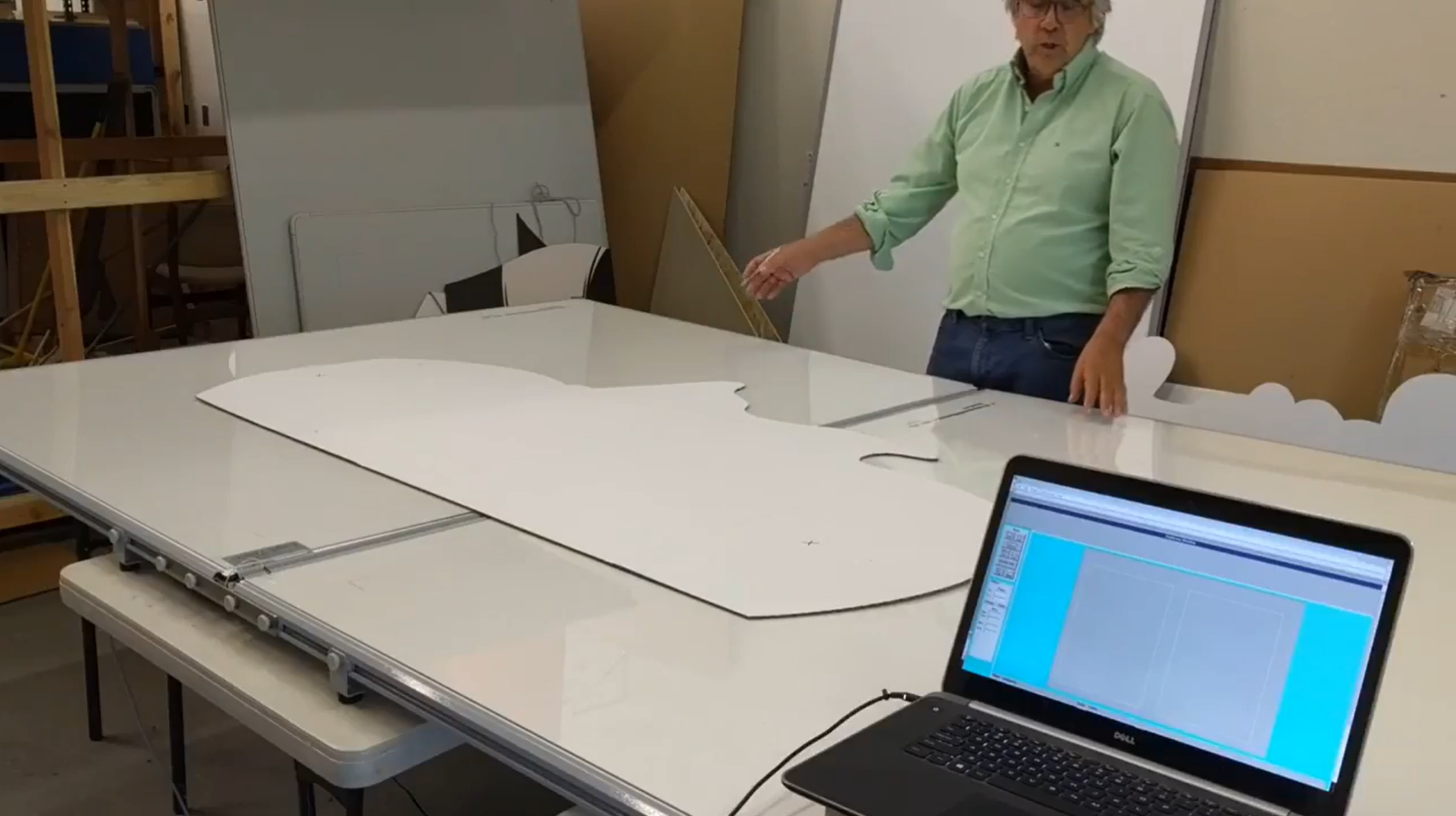

✷ The Logic Group has developed the Jumbo Tracer CNC Tracing System where 2 or more 44x60" boards can be connected together for tracing larger patterns with the same accuracy and ease.
✷ Jumbo Tracers are available in sizes 5x8' (1.5x2.4m), 5x12' (1.5x3.6m), 5x16' (1.5x4.8m), 8x11' (2.4x3.3m), and 8x16.5' (2.4x5m). More information is available on the product page.
✷ If a user only has one tracing board and a pattern larger than the tracing board, they can trace the left half, save the DXF file, trace the right half, save the DXF file and load the two files into their CNC or CAD software and combine. The Jumbo Tracer is easier and more accurate but costs more.
